You’ve probably listened to that peculiar noise made by your machine during operation, the kind of noise that your fellow machinists hate, and chatter is that noise. The cutting tool and workpiece are vibrating through each other, the latter being the major reason for poor quality surface finishes, material wastage, and lost production time.

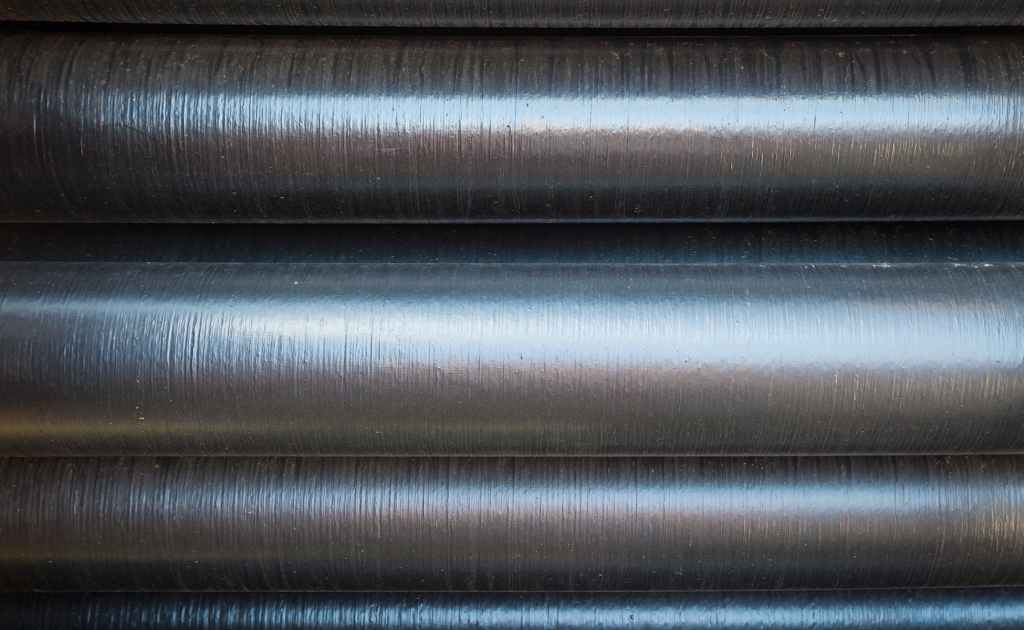

Chatter during the primary cutting operation influences the quality of parts manufactured by casting as well as stamping. The tool not only generates the usual noise but also leaves behind an obvious wavy pattern on the workpiece, which is a strong signal that a change in process is required. For operations involving deep draw production or precision boring, chatter can be the difference between meeting your 32 micro-inch surface finish requirement and scrapping an entire batch.
This article walks you through the steps we take to get rid of chatter while machining for more perfect parts. You’ll discover practical techniques focused on tooling selection, insert geometry, and parameter adjustments that can transform your chattering nightmare into smooth, consistent cuts.
Understanding Chatter in Machining
Picture the situation: you are fabricating a part, and all at once, the unmistakable whining and screaming noise is heard all over the workshop. This is no other than the chatter vibration that has come out of hiding, and it is going to spoil your day.
Chatter is a phenomenon of vibrations between the cutting tool and the workpiece. When the machining process takes place between the two surfaces, instead of smoothly cutting through the material, the tool bounces off. The bouncing forms a feedback loop-the vibration of the tool alters the depth of cut, which in turn causes more vibrations and so on. What do you get? That horrific singing or chirping sound, which is the nightmare of every machinist, is accompanied by a wavy pattern on the workpiece surface.
The Real Cost of Chatter
When cutting tool vibration takes over, you’re not just dealing with an annoying noise. The consequences hit your bottom line hard:
Wasted time – Parts need to be scrapped or reworked, and you’re burning hours trying different machining parameters to find a solution
Material waste – Those rejected parts represent raw material dollars thrown away
Increased tooling costs – Excessive vibration accelerates tool wear and can even cause catastrophic tool failure
Production delays – When you can’t maintain consistent quality, your entire schedule gets thrown off
A single part that should take minutes to machine can turn into an hours-long troubleshooting session when chatter strikes.
Key Factors Influencing Chatter
When you’re dealing with chatter in your machining operations, knowing the key factors involved can make a big difference. Several tooling parameters work together to either make those annoying vibrations worse or better.
1. Boring Bar Material and Geometry
The material and shape of your boring bar are crucial. The density and stiffness of your boring bar directly affect how well it resists bending during cutting. Here are the options you have:
- Steel bars: The most economical choice, but also the most likely to vibrate.
- Heavy metal bars: A middle ground with improved stiffness.
- Carbide bars: The best option for reducing vibration.
Another thing to consider is the length of the bar sticking out from the holder-the longer it extends, the more likely it is to chatter.
2. Insert Nose Radius
Surprisingly, the shape of your insert’s nose also has a significant impact on cutting forces and vibration. Here’s how it works:
- A larger nose radius (like 0.031″) creates more contact area between the tool and workpiece, generating higher cutting forces that can trigger chatter.
- Smaller nose radii (0.008″ or 0.0156″) reduce these forces substantially, making your setup less prone to vibration.
3. Machining Parameters
Your machining parameters-cutting speed, feed rate, and depth of cut-need to be carefully balanced:
- You might need to run at 50% of the recommended speeds when using long stick-out tooling.
- The feed rate often needs to stay locked in order to achieve your desired surface finish, which is typically around 32 microinches.
- Adjustments to the depth of cut from 0.030″ down to 0.020″ can sometimes quiet a chattering tool without sacrificing productivity.
Experimental Approach to Reducing Chatter
To systematically tackle chatter and demonstrate the Steps We Take To Get Rid of Chatter While Machining For More Perfect Parts, we designed a comprehensive testing protocol using real-world conditions. The test setup involved three distinct boring bar materials:
Steel boring bar – representing the most economical option
Heavy metal bar – offering a middle-ground solution between cost and performance
Carbide bar – providing maximum rigidity and vibration damping
Each of the nine boring bars was tried in conjunction with three different insert setups, each presenting a distinct nose radius of 0.031″, 0.0156″, and 0.008″. Ultimately, this not only led to the creation of nine isolated test cases but also to the identification of the variables that had the biggest impact on the reduction of chatter.
Maintaining Test Consistency
The critical element in our experimental approach was controlling variables that could skew results. We set all boring bars to identical stick-out lengths, eliminating any variation that different tool extensions might introduce. This standardization meant that any performance differences we observed came directly from the bar material or insert geometry-not from inconsistent setup conditions.
We selected a challenging test piece: a long, slender part with thin walls requiring internal diameter turning. This type of geometry naturally amplifies chatter issues, making it perfect for demonstrating how different tooling choices perform under demanding circumstances. Each test aimed for a 32-microinch surface finish, setting a clear benchmark for success.
Results from Tooling Material Changes and Impact of Insert Nose Radius on Chatter Reduction
The testing revealed dramatic differences in performance across boring bar materials. Starting with the steel bar and a 0.031″ nose radius insert produced a whopping 227 surface finish reading-essentially unusable for any quality part production. The screaming noise and wavy pattern made it clear this combination wasn’t going to work.
Switching to the heavy metal bar brought immediate improvements. With the same 0.031″ nose radius insert, the surface finish dropped to around 70 RA. While still not meeting the target 32 RA requirement, this represented a massive leap forward. The heavy metal bar’s enhanced rigidity and superior vibration absorption capabilities made the difference, even though we were using the same insert geometry.
Carbide bars delivered the best performance, though they weren’t a magic bullet. With the 0.031″ nose radius, we achieved similar results to the heavy metal bar-around 70 RA. The real breakthrough came when we combined carbide’s exceptional vibration-damping properties with smaller nose radii.
The nose radius impact was equally significant:
- 0.031″ radius: High cutting forces, severe chatter (225+ RA with steel)
- 0.015″ radius: Reduced forces, moderate improvement (50-70 RA range)
- 0.008″ radius: Minimal forces, best results (22-26 RA with carbide)
The boring operation with smaller nose radii results in lower cutting forces, which directly leads to less tool deflection and reduced chatter tendency. The combination of a small nose radius insert and a rigid carbide bar represents the confrontation of chatter from both angles: on the one hand, there is the lowering of forces that attempt to produce vibration, and on the other hand, there is the maximization of the tool’s capacity to resist it.
Optimizing Machining Parameters to Minimize Chatter and Practical Tips Beyond Tooling for Chatter Control
The right boring bar and insert nose radius selection lays the groundwork, but at the same time, speed adjustment is equally important in the fight against chatter. When working with extended stick-out tooling-like the boring bars used in our testing-you’ll want to start at significantly reduced spindle speeds. We began many of our tests at 50% of the recommended speed, particularly with steel bars, because longer tool extensions simply can’t handle aggressive speeds without triggering excessive vibrations.
Here’s what we learned about parameter optimization:
Start conservative with speed: When you have a boring bar hanging out several inches, don’t jump straight to the manufacturer’s recommended surface feet per minute. First, take half of that number and then, based on your observations and listening, gradually increase it.
Consistency during the entire cut: one of the worst mistakes that you can make is to set parameters that work wonderfully at the chuck but cause chatter as you advance deeper into the piece. You noticed in our tests how some setups performed well at the back of the part (where rigidity is higher) but screamed at the front. This inconsistency creates quality issues and makes automation nearly impossible.
Adjust depth of cut when needed: In our experiments, we reduced the cutting depth from 0.030″ to 0.020″, which turned out to be a good decision as the cutting forces and vibration were less. In some cases, a lighter force does the trick.
Lock in your feed rate for surface finish: If your feed rate is different from the target, then the surface finish will not be the same. We fixed our feed rates in order to achieve that 32-microinch target.
Case Study: Degele Manufacturing’s Approach to Quality Parts Production Over 50 years in the industry has made Degele Manufacturing Inc. a trusted name in producing high-quality metal parts. Since 1970, we have built our reputation on applying methods that prevent issues like chatter from becoming costly problems.
How We Eliminate Chatter During Machining for Perfect Parts
Our approach to eliminating chatter begins with the design of our facility. We have separate areas dedicated to each stage of production:
- Tooling design and fabrication
- CNC machining operations
- Quality inspection stations
- Assembly and finishing work
- Equipment maintenance
This separation gives us the opportunity to control the process better. Complete stamping presses that can take from 40 to 400 tons and the production of small parts ranging from 2,500 to millions each year, it is paramount to get rid of chatter completely. One of our strengths in CAD and design-for-manufacturability helps us locate the possible vibration issues in the tooling stage, before production even starts. Labor-saving approach, alongside the support of short-run prototypes, ensures that your parts are in accordance with the specifications from the very first one and throughout the entire production process.
